Used Bottling Line PET 12.000 bph CSD:
12,000 bph x 150 cl
Existing formats : 150 cl & 50 cl (filler can do from 25 cl to 250 cl)
Caps : 1881 type short cap
Scope of supply :
Full stainless steel air conveyors (complete with straight sections, curves and
blowers).

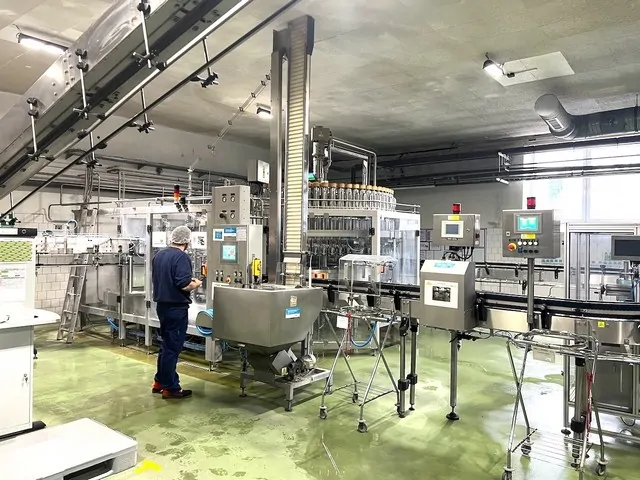

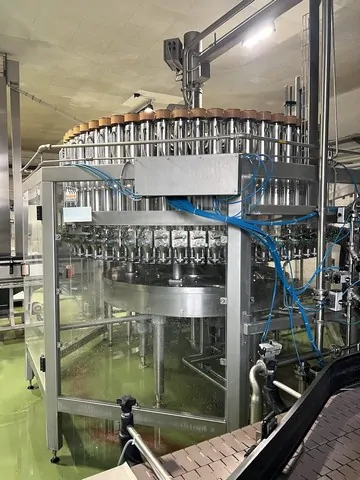

NATE filling block type 40/64/8 from 2014
For carbonated soft-drinks (8 gr CO2 per liter)
Rinser with 40 nozzles

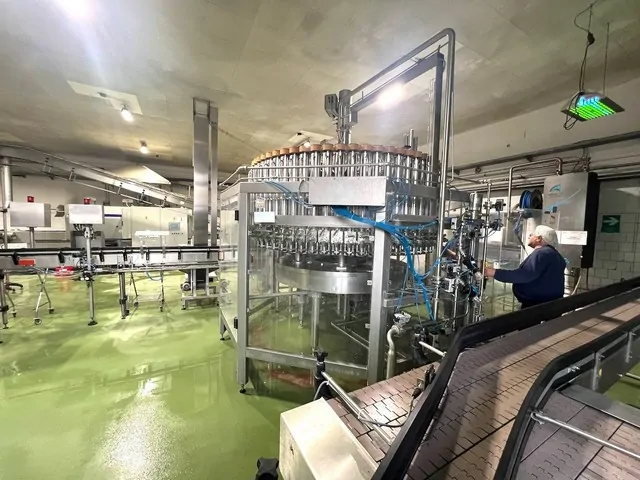

Filler with 64 filling valves (volumetric mechanical type)
Capper with 8 heads (short cap type 1881)
Including cap feeding unit (hopper, elevator & chute)
Mixer is kept by factory so no mixer with this line

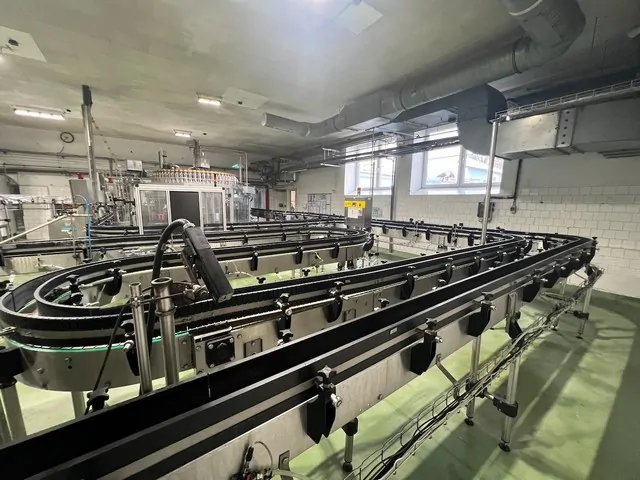

Full bottle conveyors & full bottle inspector (FBI) + ejector

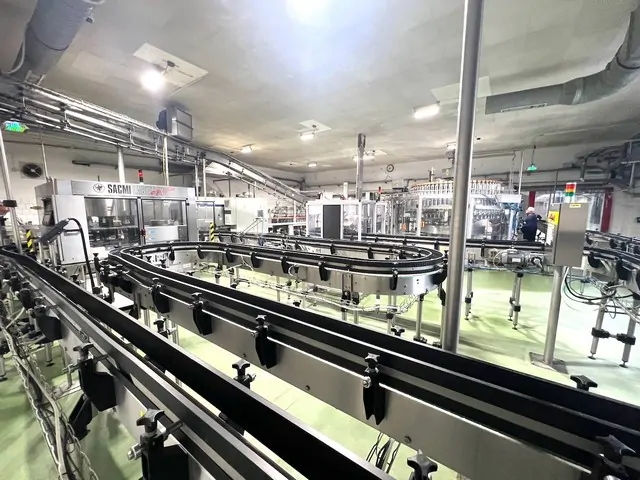

SACMI labeler type OPERA model 8LRF 200A from 2014
Polypro labels in rolls
CERMEX shrink-wrapper model TSP30LP from 2012
Single lane with shrinking-oven
Pack conveyors
DECIMO handle applicator model XH40/1 from 2018

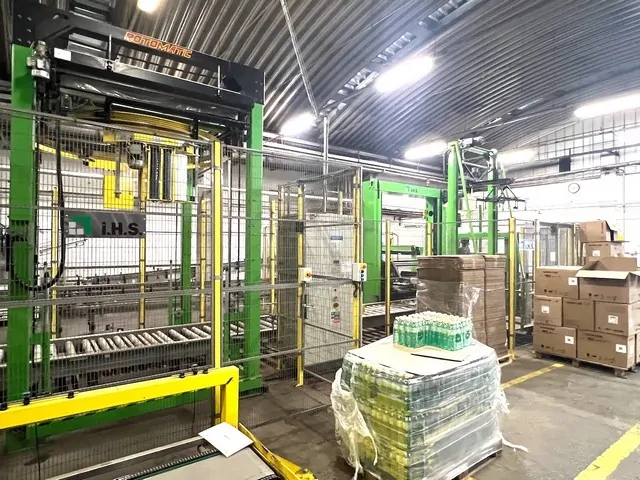

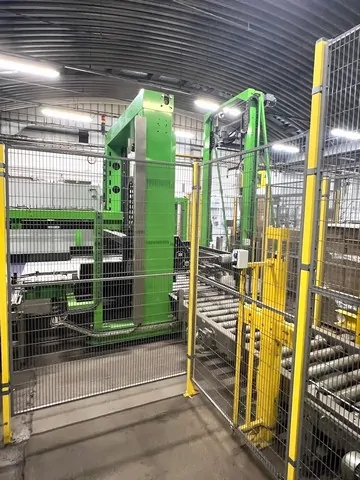

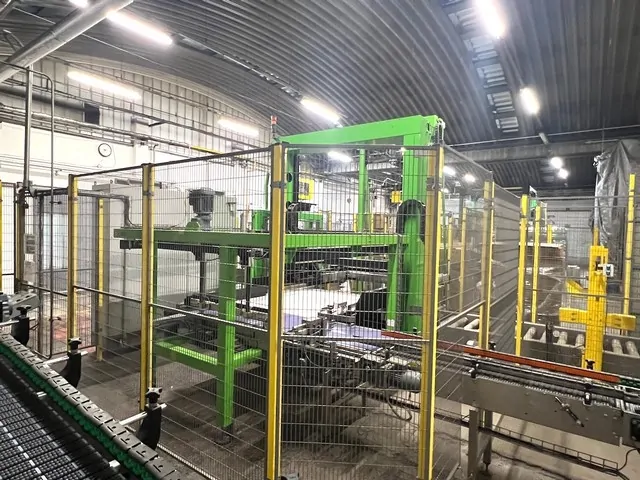

I.H.S Palletizer model 2/P from 2012
Up to 2.500 packs/hour

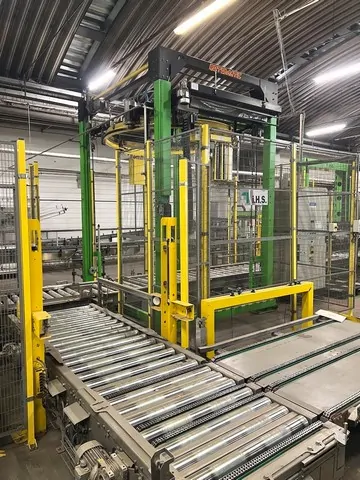

With ROTOMATIC Pallet foiler
Pallet conveyors
